Heated windows (ML 430)

0

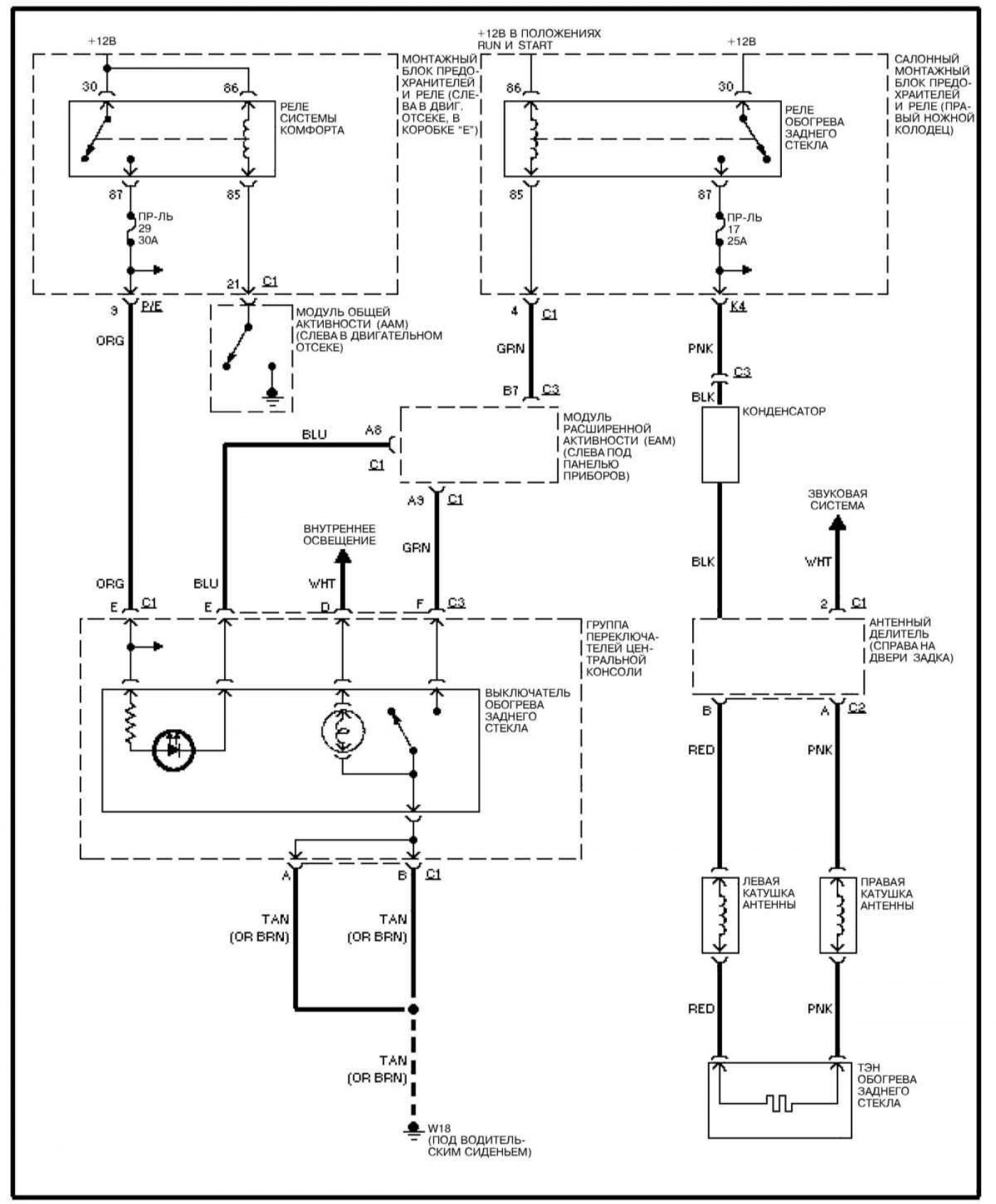

Glass heating (ML 430)




Открыть большую картинку в новой вкладке »

Abbreviations used on electrical diagrams, designations of electrical wiring, terminals and terminals, see here →
