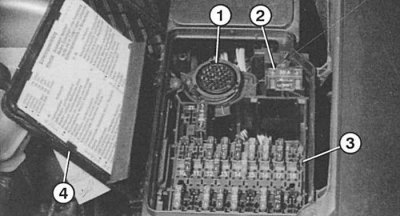

Pic. 9.38. The fuse and relay mounting block is located on the left side of the car next to the brake booster. It contains most of the fuses. To facilitate troubleshooting, the location of the fuses is indicated on the back of the block cover: 1 - diagnostic connector; 2 - overload fuses; 3 - fuses; 4 - block cover
This most important piece of electrical equipment in the car is located at the rear of the engine compartment on the left (pic. 9.38). It has five fuse boxes (F1/1–5), diagnostic socket, clock module and, if available, ADS system controller. On the underside of the fuse and relay box are color-coded plug-in combs. To remove the connector, press the sliding latches on the side. Some power connections are threaded.
